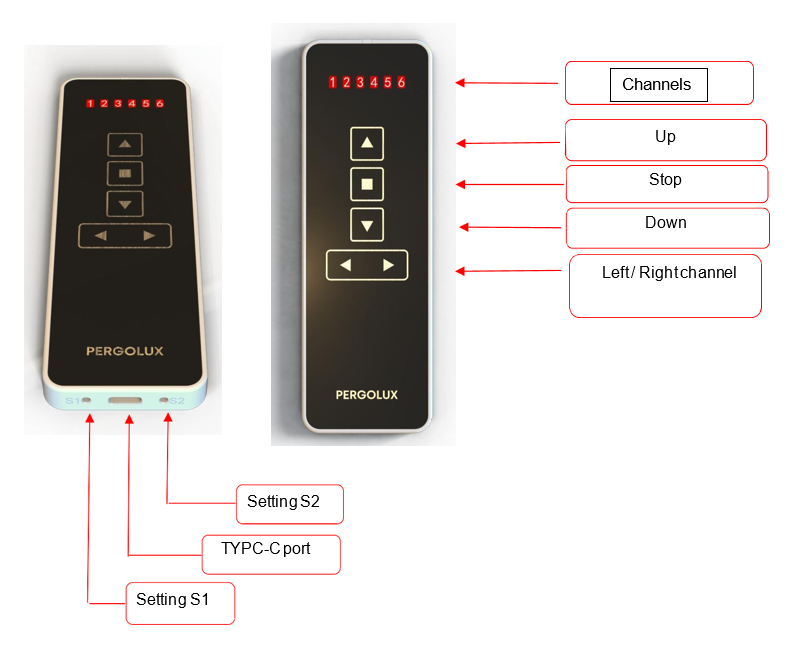

Here’s a quick and easy guide to using the buttons on your S3 PERGOLUX remote control:
Control Buttons
-
Up Button: Moves the pergola slats or screen upward.
-
Stop Button: Halts any current movement.
-
Down Button: Moves the pergola slats or screen downward.
Setting Buttons
-
S1 Button: Used for setting upper and lower limits, deleting programming for a single channel, or clearing all programming.
-
S2 Button: Used for network configuration, motor activation, and programming tasks.
Choosing a Channel
-
Right Channel Button: Scrolls up to a higher-numbered channel.
-
Left Channel Button: Scrolls down to a lower-numbered channel.
Low Voltage Alert
-
If your remote battery drops below 20% (3.65V), the LED display will dim as a low-power warning.
